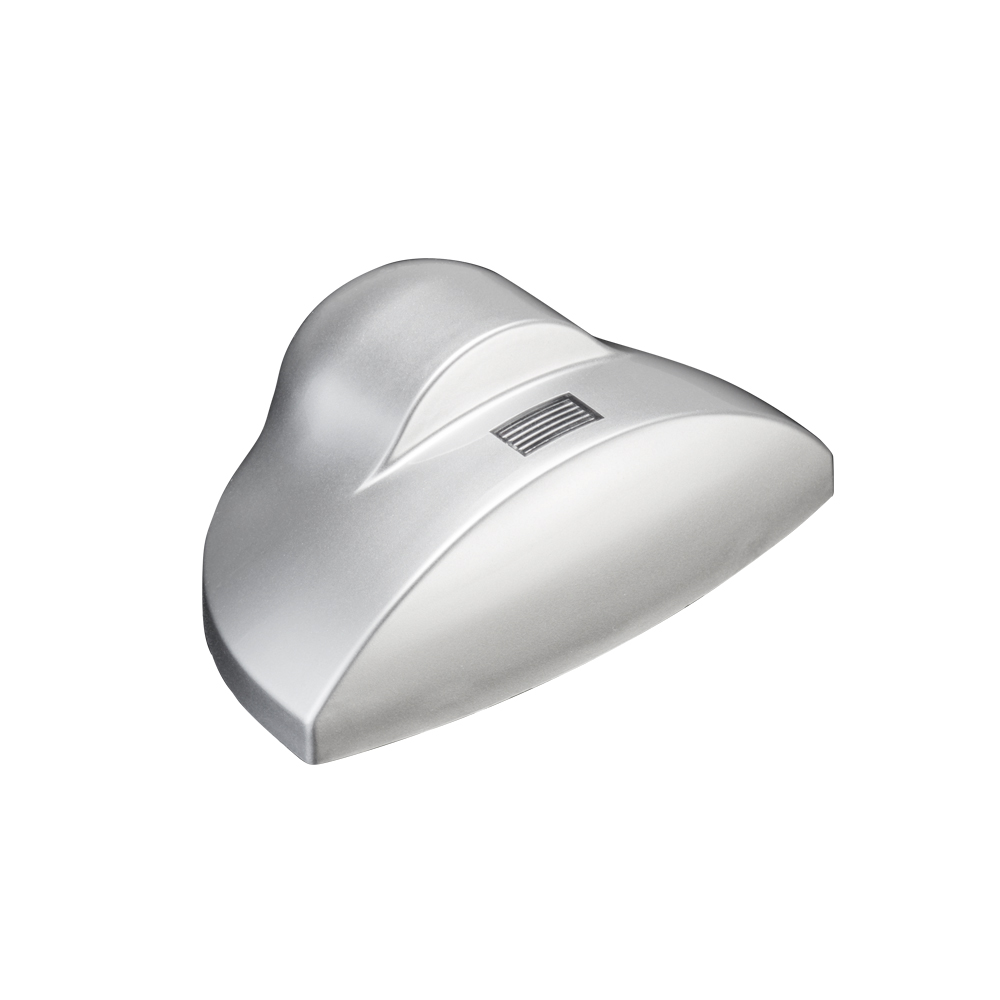

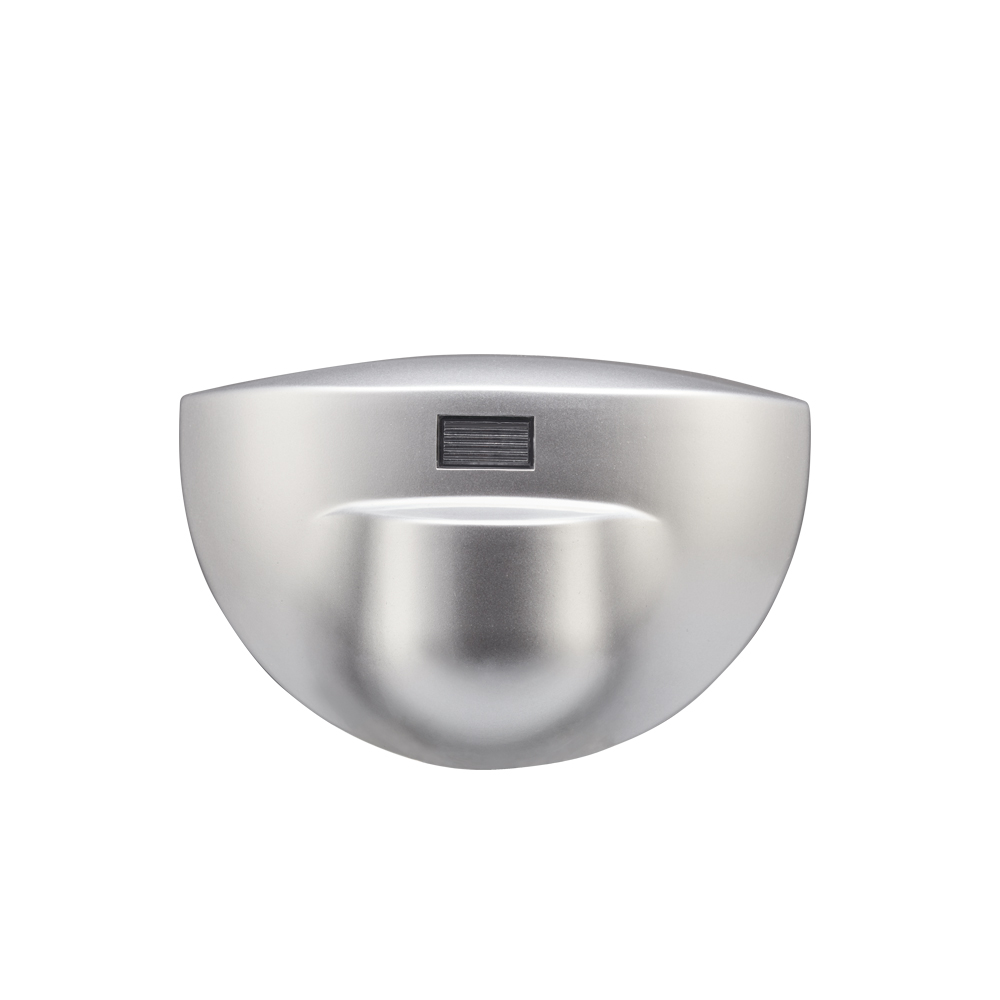

Microwave Infrared Sensor
There are 3 Similar products,Comparison
Microwave Sensor
Model:YAD-100IS
Keywords:
Prev:Nothing
Share to:
Product Parameter Parameter Description
Dimension 120mm(W)×80mm(H)×50mm(D)
Power Voltage 12V to 30V AC+/-10%(50Hz to 60 Hz); 12V to 36V DC
Anti-interference performance R&TTE 1995/5/EC,EMC 89/366/EEC
Power <2W(VA)
Maximum voltage 42AC-60V DC
Maximum Current 1A
Maximum switching power 30W(DC)/60VA(AC)
Retention time 0.5S
Protection class IP54
Sheating material ABS plastic
Color Black/silvery
Detection range 8m*4m(Installation Height 2.2M)
Min detection speed 5cm/s
Frequency 24.125GHz
Installation angle 0-90 degree(lengthways)-30 to +30(lateral)
Installation height 4M
Guide line 2.5m
Detection Mode Motion
Working temperature -20℃ to +55℃
Transmitting power <20dBm EIRP
Launch frequency density <5mW/cm2
Technology Microwave&microwave disposer
Certification CE-EMC
 coming soon

 coming soon

Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

 coming soon

 coming soon
