Key Switch
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Key Switch
There are 9 Similar products,Comparison

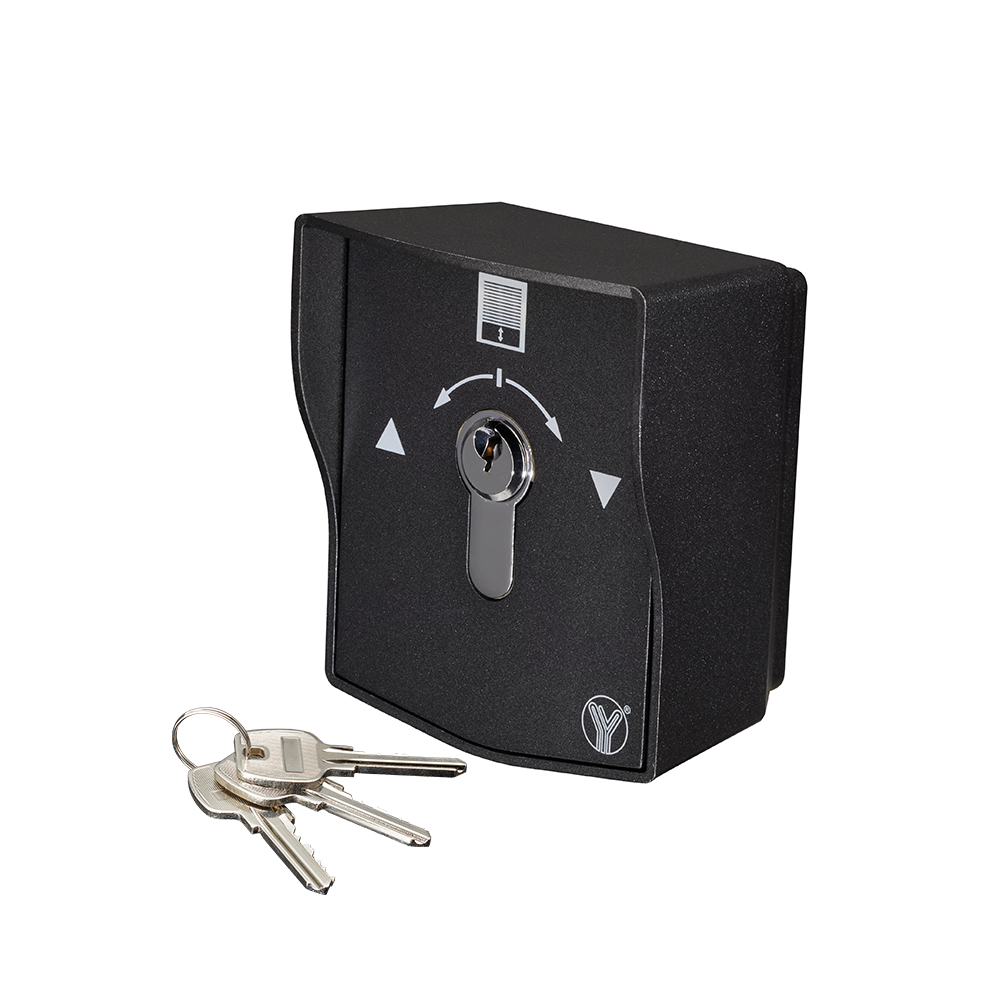

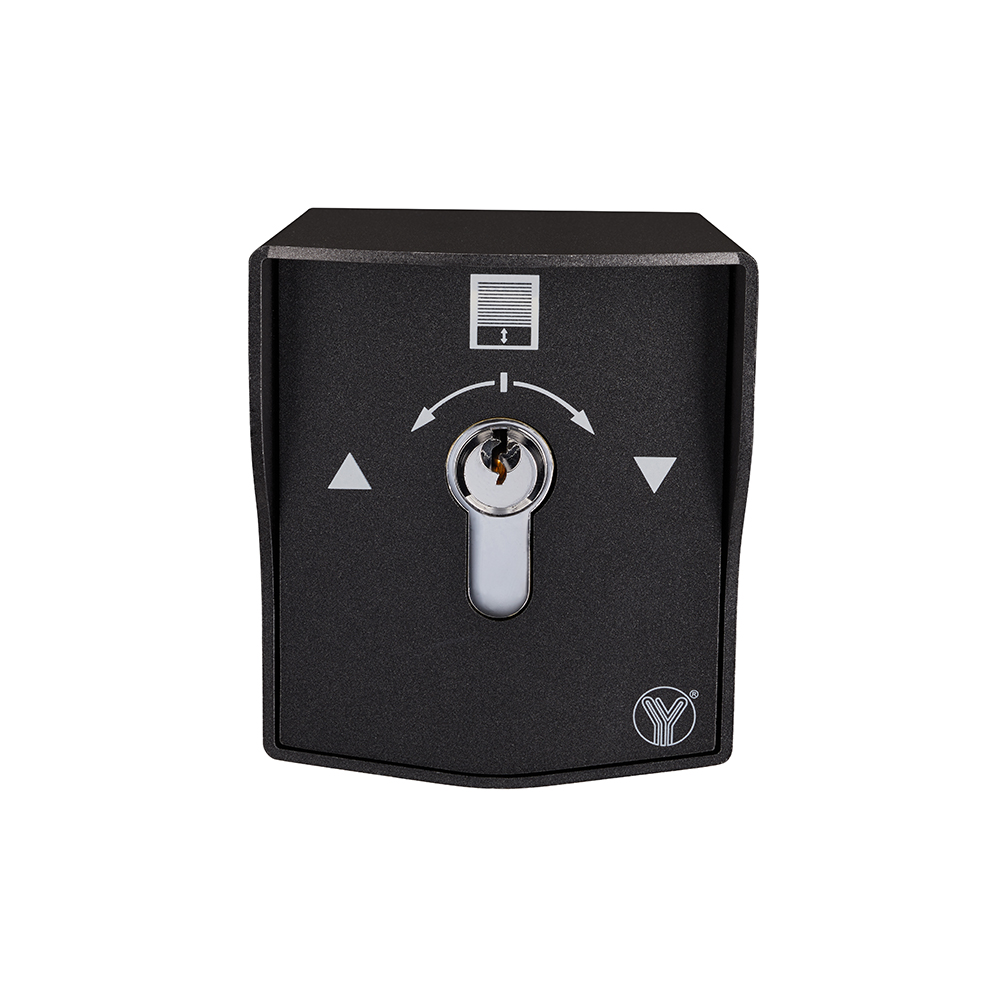

European Standard Waterproof Key Switch for Rolling Door
Model:YKS-853B(EN)
YKS-853B(EN) is an European Standard Waterproof Exit Button For Rolling Door in size of 78Lx91.5Wx61H(mm). They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.
Keywords:
Share to:
Product Parameter Parameter Description
Feature Surface mount

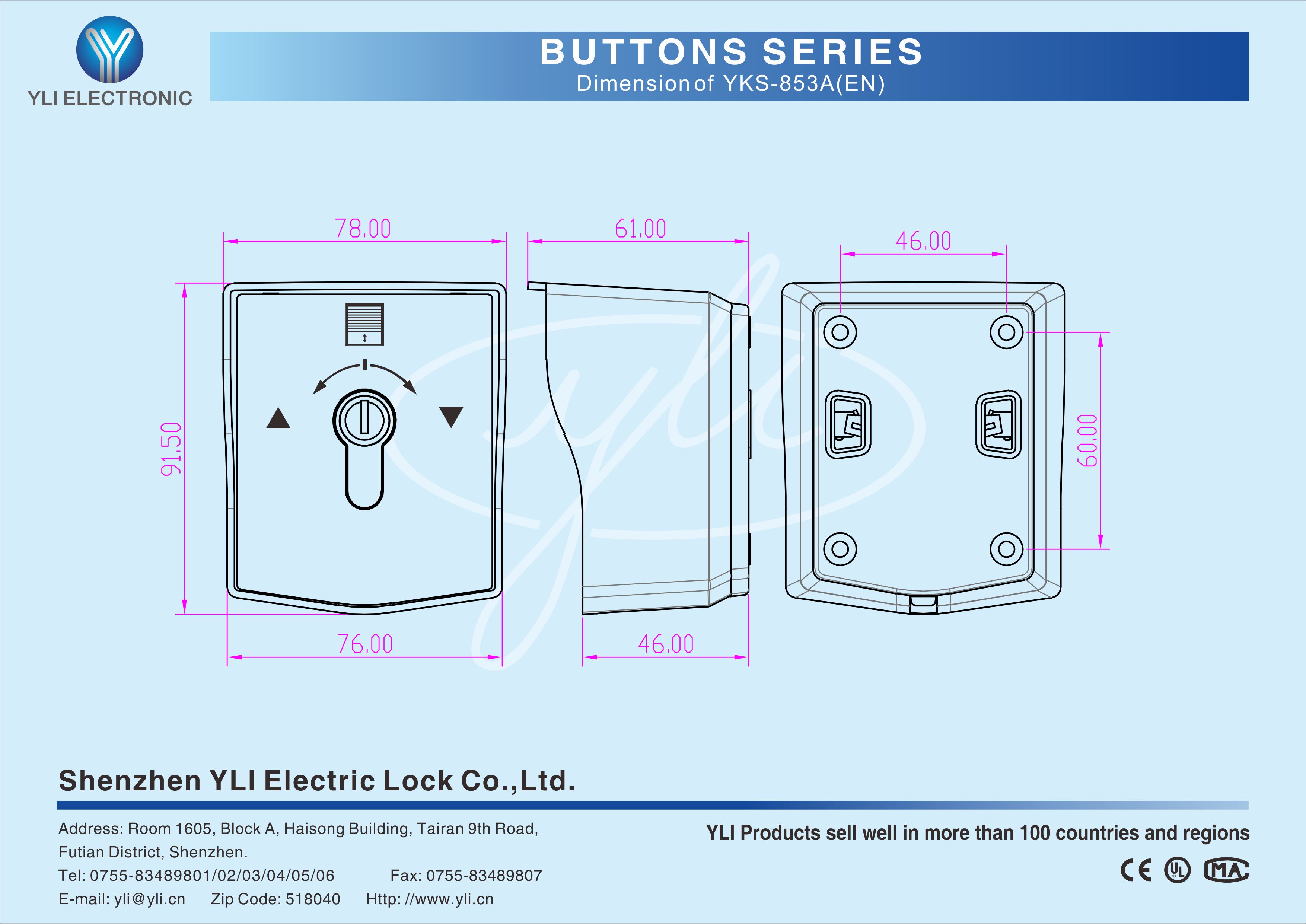

Dimensions 78Lx91.5Wx61H(mm)
Struture  Zinc alloy with black paint treatment , brass key
Contact Rating  5A/125VAC (max)
Output contact  Double pole:  NO/NC/COM
Type  Self-reset
Mechanical life  100,000 tests
Feature  Surface mount
Operating temp  10~+55(14-131F)
Operating humidity  0-95% (non- condensing)
Waterproof Level IP-65
Weight  0.4kg
All metal structure, safety.
Anti-break design, durable.
100000 tested mechanical life.

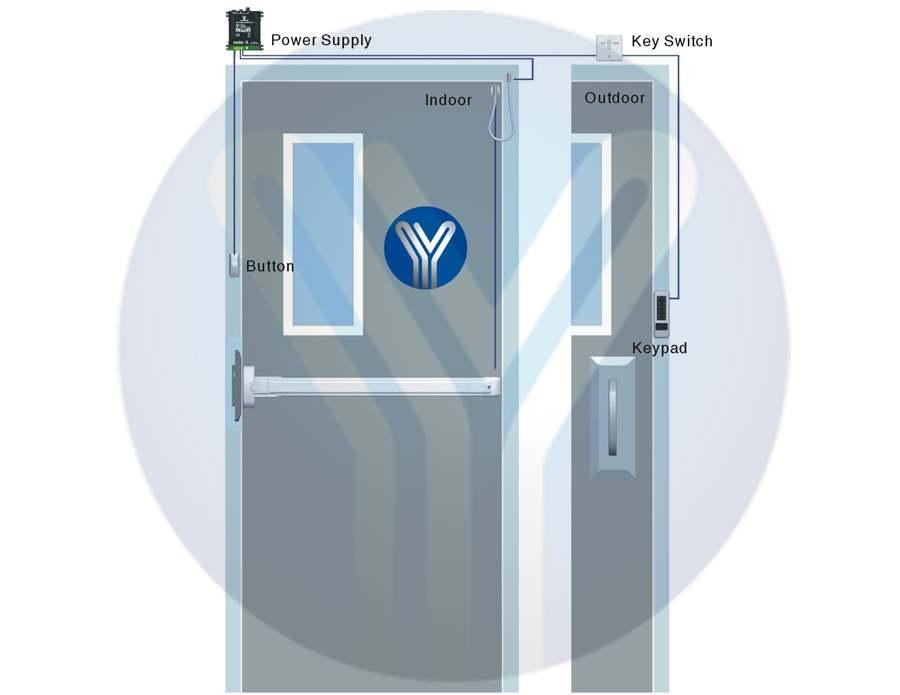

Suitable for access controls,fireproof door, alarm.
Official authorized product of access control project.


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 50
Packing Size(L*W*H)(cm) 52*22*36
Gross Weight(KG) 20
