Push Button
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Push Button
There are 28 Similar products,Comparison
Door Release Button
Model:PBK-813(LED)
PBK-813(LED) access control exit button, 304 stainless steel, with 12~24V input voltage, LED light display feedback unlocking or locking state, traffic light conversion, green light unlocking state, red light locking state.
Keywords:
Next:Nothing
Share to:
Product Parameter Parameter Description

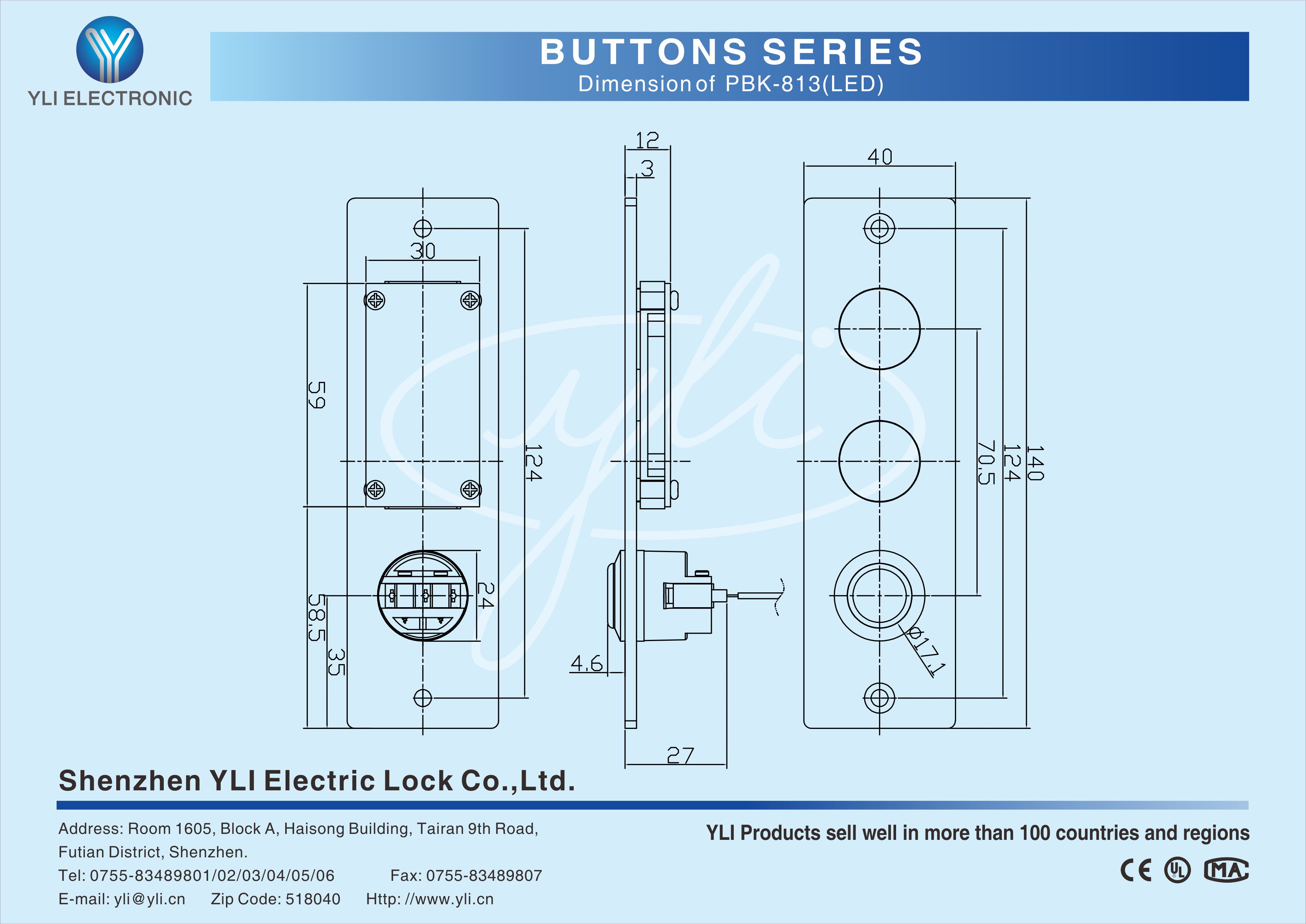

Dimensions 140Lx40Wx27H(mm)
Standard Structure
304 stainless steel panel with wiredrawing finish, 304 stainless steel button
Input Voltage 12~24VDC
Current ≤50mA
Contact NO(Green),NC(Yellow),COM(White)
Electric Performance 1A@30VDC
Lock Signal NC/COM/NO
Mechanical life 1000,000 tested
LED Status When NC and COM connect,LED shows green
When NO and COM connect,LED shows red
Operating temp -20~+50℃
Operating Humidity 0-95% (relative humidity)
Weight 0.2kg
Certification CE-EMC CE-LVD RoHS
304 stainless steel.

Input Voltage: 12~24VDC

LED Status: When NC and COM connect,LED shows green; When NO and COM connect,LED shows red.

Lock Signal: NC/COM/NO


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN)
Packing Size(L*W*H)(cm)
Gross Weight(KG)

  coming soon
