Push Button
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Push Button
There are 28 Similar products,Comparison
Door Release Button
Model:PBK-817B-AL(R)

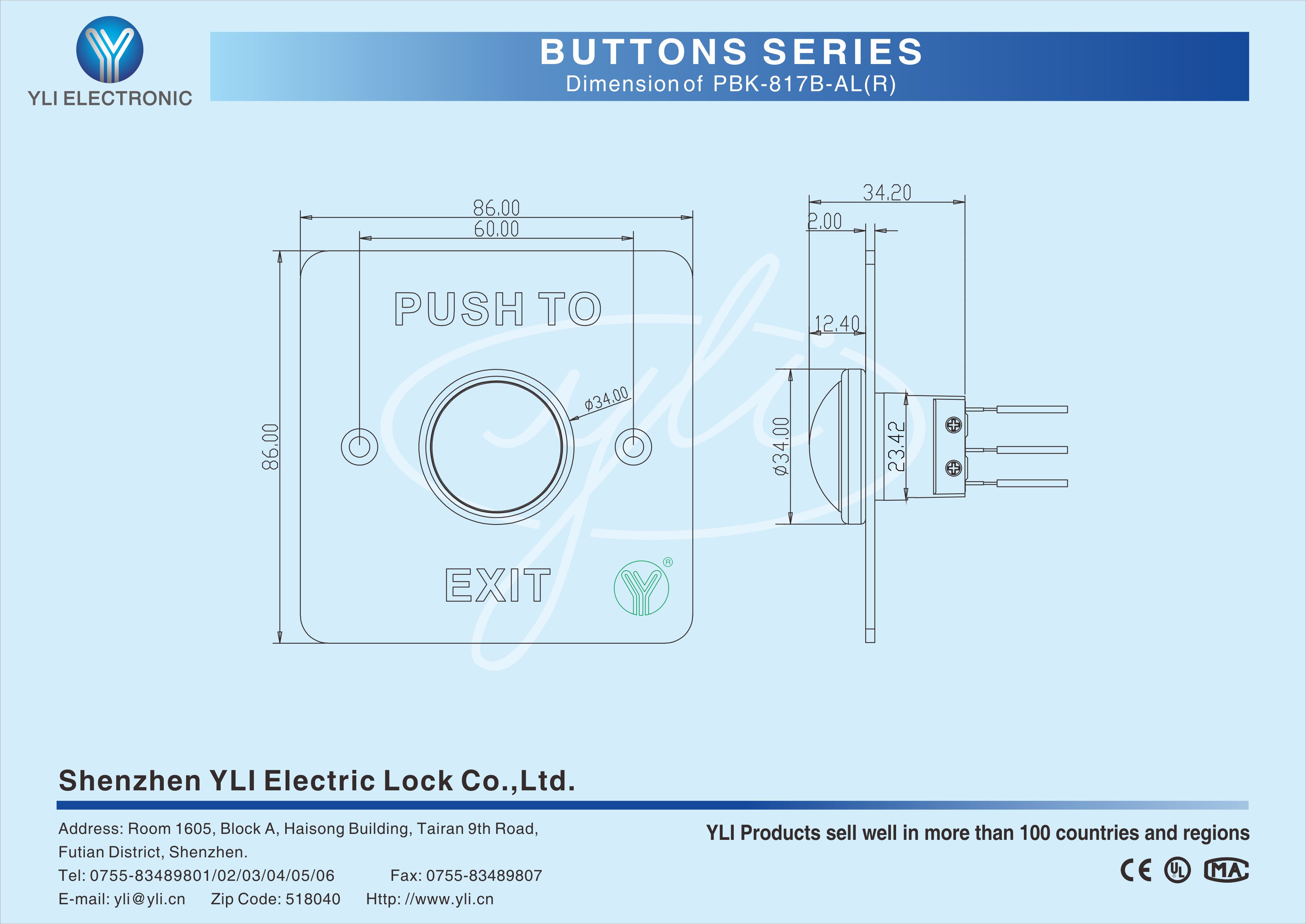

PBK-817B-AL(R) Door Release Button is a big metal button.(Access Control System Exit Button) 304 stainless steel panel with size of L86xW86xH34.2(mm). They are often used in public authorities, banks, large、small and medium-sized enterprises, department stores and residences.
Keywords:
Share to:
Product Parameter Parameter Description
Dimensions  86Lx86Wx34.2H(mm)
Standard structure  304 stainless steel panel with wire drawing finish,Big Metal Button
Current rating  30VDC  1A
Output contact  NO(Green),NC(Yellow),COM(White)
Mechanical life  1000,000 tested
Suitable for door  Hollow doors
Operating temp  -20~+60℃
Operating humidity  0-95% (RH)
Weight  0.2kg
Certification CE-EMC CE-LVD RoHS
 Stainless Steel Panel, Big Metal Button

 Mechanical life 1000,000 tested

304 stainless steel panel with wire drawing finish

The Best Choice for Access Control System.
Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.
YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
