Push Button
首頁  ?  Home  ?  Products  ?  Exit Button  ?  Push Button
There are 28 Similar products,Comparison
Door Release Button with Back Box
Model:PBK-815

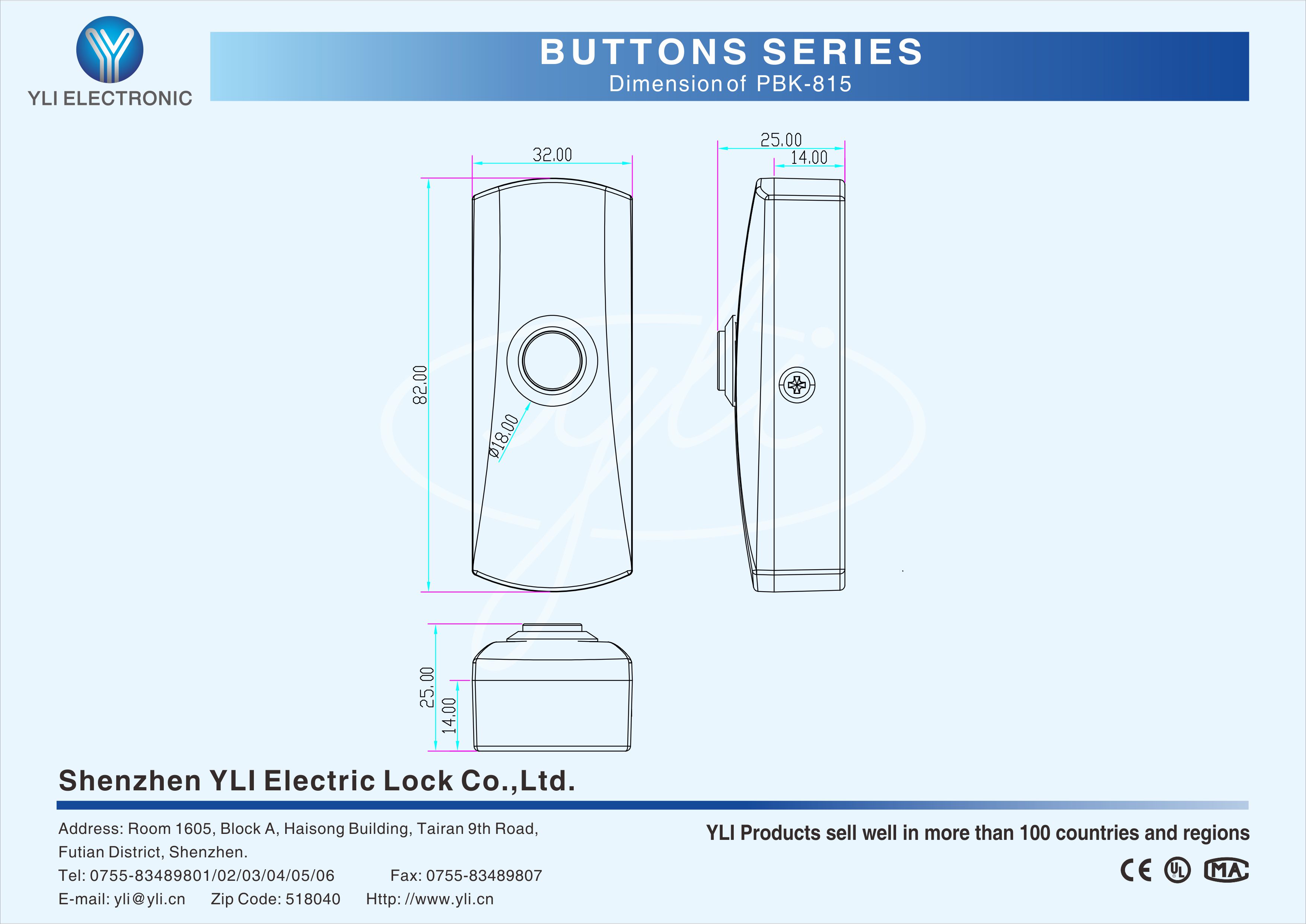

PBK-815 is a door release button with back box in size of 83Lx32Wx25H(mm),which is the most common and the most frequently used in the access control systems.
Keywords:
Share to:
Product Parameter Parameter Description
Dimensions 82Lx32Wx25H(mm)
Standard Structure Alloy Plate, Steel Button
Current Rating 3A@36VDC Max
Output Contact NO/COM
Mechanical Life 500,000 tested
Suitable for Door All Kind of the Narrow Door Frame
Operating temp -20~+50℃
Operating Humidity 0-95% (relative humidity)
Weight 0.086kg
Certification CE-EMC CE-LVD FCC  REACH WEEE
Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style.
With the Bottom Box, Easy to  Install.
500,000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.


Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.

Packing Quantity(PCS/CTN) 150
Packing Size(L*W*H)(cm) 54.5*20*17.8
Gross Weight(KG) 18
