Piezoelectric
There are 10 Similar products,Comparison

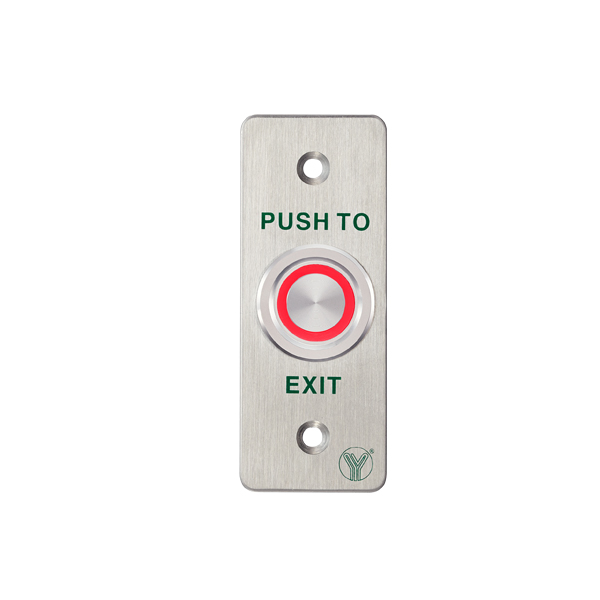

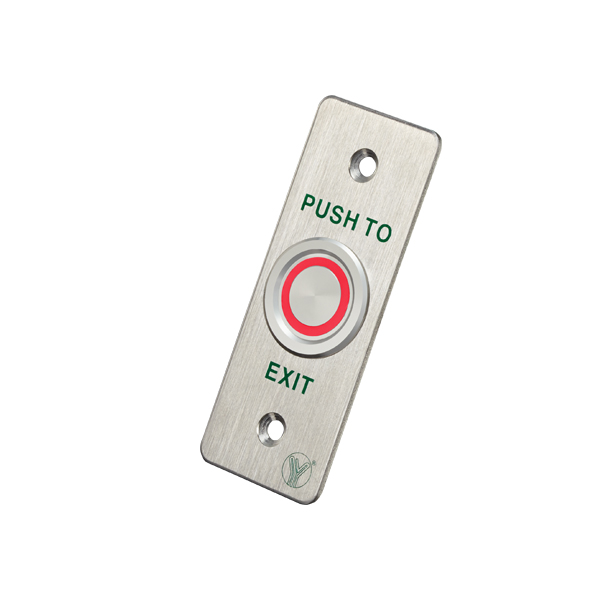

Piezoelectric Exit Button(Stainless steel)
Model:PBS-820A(LED)
PBS-820A(LED) is a Piezoelectric Exit Button(Stainless steel) with LED in size of 90Lx35Wx20H(mm) suitable for all kinds of locks with feature of waterproof.
Keywords:
Share to:
Product Parameter Parameter Description

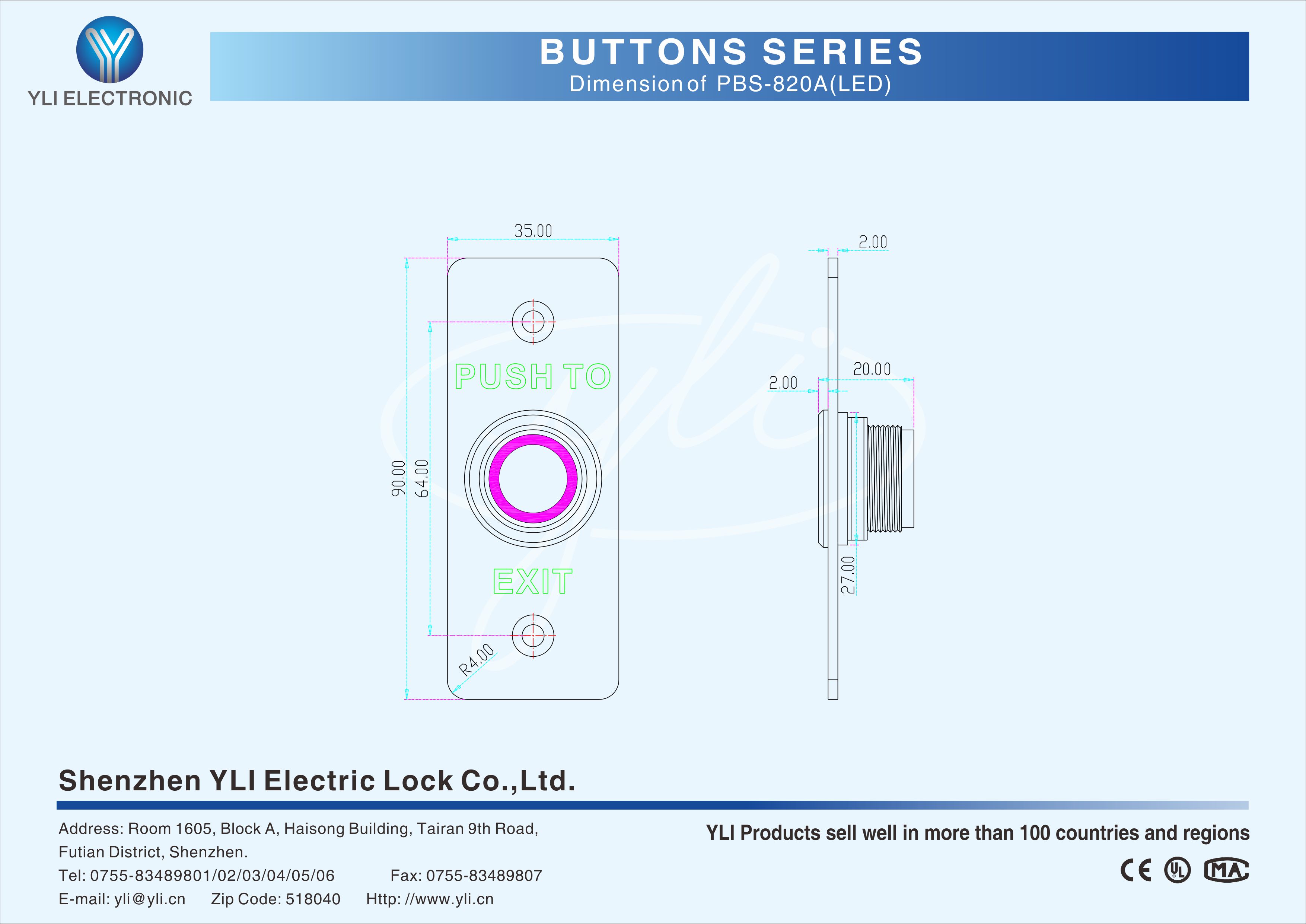

Dimensions 90Lx35Wx20H(mm)
Standard Structure 304 stainless steel panel with wire drawing finish
Voltage 12V
Current Standby 20mA
Output Contact NO/COM
Current Rating 1A@30VDC  0.5A@125VDC
Operating Temperature -20℃~50℃
Operating Humidity 0%~99%
Waterproof  Level IP-68
Wire color Red: Positive  Black: Negative
LED Status RED:Standby   GREEN:Operation
Mechanical life 100000 tested
Weight 0.18kg
Certification CE-EMC CE-LVD FCC-VOC REACH WEEE
Stainless steel Panel with Elegant Style.
100000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.



Warranty Service will be honored if the damage is not caused by human, YLI Provides 1 years warranty for relative products. On the contrary, YLI will charge extra if repair. More information, please browse our service centre.

YLI Company retains right to modify the specification of products, and for parameters amendment of products, we will not inform in advance. The relative pictures are not allowed to used in any other way without the consent of YLI Company. Meanwhile, we reserved all the rights of law for any tangle.
